Brain controlled car for disabled using Artificial Intelligence

By | February 23, 2016

This post considers the development of a brain driven brain controlled car for disabled, which would be of great help to the physically disabled people. Since these cars will rely only on what the individual is thinking they will hence not require any physical movement on the part of the individual. The car integrates signals from a variety of sensors like video, weather monitor, anti-collision etc. it also has an automatic navigation system in case of emergency. The car works on the asynchronous mechanism of artificial intelligence. In the 40s and 50s, a number of researchers explored the connection between neurology, information theory, and cybernetics. Some of them built machines that used electronic networks to exhibit rudimentary intelligence, such as W. Grey Walter’s turtles and the Johns Hopkins Beast. Many of these researchers gathered for meetings of the Teleological Society at Princeton and the Ratio Club in England.
Most researchers hope that their work will eventually be incorporated into a machine with general intelligence (known as strong AI), combining all the skills above and exceeding human abilities at most or all of them. A few believe that anthropomorphic features like artificial consciousness or an artificial brain may be required for such a project.

Sample car for disabled people

Sample car for disabled people

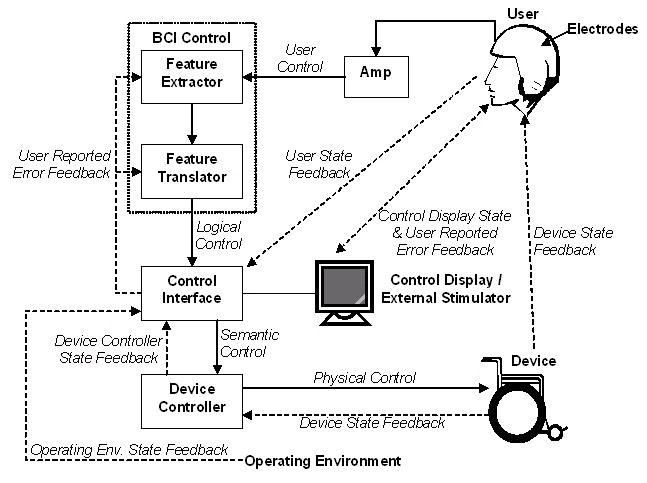

A brain-computer interface (BCI), sometimes called a direct neural interface or a brain-machine interface, is a direct communication pathway between a human or animal brain (or brain cell culture) and an external device. In one-way BCIs, computers either accept commands from the brain or send signals to it (for example, to restore vision) but not both. Two-way BCIs would allow brains and external devices to exchange information in both directions but have yet to be successfully implanted in animals or humans.

             In this definition, the word brain means the brain or nervous system of an organic life form rather than the mind. Computer means any processing or computational device, from simple circuits to silicon chips (including hypothetical future technologies such as quantum computing).

                Once the driver (disabled) nears the car. The security system of the car is activated. Images as well as thermo graphic results of the driver are previously fed into the database of the computer. If the video images match with the database entries   then   the security system advances to the next stage. Here the thermo graphic image verification is done with the database. Once the driver passes this stage the door slides to the sides and a  ramp  is  lowered  from  its  floor.  The ramp  has  flip actuators in  its  lower  end. Once the driver enters the ramp, the flip actuates the ramp to be lifted horizontally. Then robotic arms assist the driver to his seat.   As soon as the driver is seated the EEG (electroencephalogram) helmet, attached to the top of the seat, is lowered and suitably placed on the drivers head. A wide screen of the computer is placed at an angle aesthetically suitable to the driver.  Each program can be controlled either directly by a mouse or by a shortcut. For starting the car, the start button is clicked.  Accordingly the computer switches   ON   the   circuit   from   the   battery   to   the A.C.Series Induction motors.

3. Bio-control System

         The biocontrol system integrates signals from various other systems and compares them with originals in the database. It comprises of the following systems:

  •  Brain-computer interface
  •  Automatic security system
  •  Automatic navigation system

 Now let us discuss each system in detail.

 3.1.Brain-computer Interface

                         Brain-computer interfaces will increase acceptance by offering customized, intelligent help and training, especially for the non-expert user. Development of such a flexible interface paradigm raises several challenges in the areas of machine   perception and automatic explanation. The teams doing research in this field have developed a single-position, brain-controlled switch that responds to specific patterns detected in spatio-temporal electroencephalograms (EEG) measured from the human scalp. We refer to this initial design as the Low- Frequency.

Asynchronous Switch Design (LF-ASD)

Asynchronous Switch Design

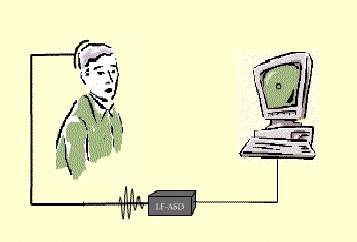

Fg(Fig.1)..1 LF-ASD

                              The EEG is then filtered and run through a fast Fourier transform before being displayed as a three dimensional graphic. The data can then  be  piped  into  MIDI compatible  music  programs. Furthermore, MIDI can be adjusted to control other external processes, such as robotics. The experimental control system is configured for the particular task being used in the evaluation. Real Time Workshop generates all the control programs from Simulink models and C/C++ using MS Visual C++ 6.0. Analysis of   data is mostly done within Mat lab environment.


  •   Remote analysis data can be sent and analyzed in real-time over a network or modem connection.
  •   Data can be fully exported in raw data, FFT & average formats.
  •  Ultra low noise balanced DC coupling amplifier.
  • Max input 100microV p-p, minimum digital resolution is100 microV p-p / 256 = 0.390625 micro V p-p. FFT point can select from 128 (0.9375 Hz), 256 (0.46875 Hz), 512(0.234375 Hz resolution).
  • Support for additional serial ports via plug-in boar; allows extensive serial input & output control.
  •   Infinite real-time data acquisition (dependent upon hard drive size).
  • Real-time 3-D & 2-D FFT with peak indicator, Raw Data, and Horizontal Bar displays with Quick Draw mode.
  • Full 24 bit color support; data can be analyzed with any standard or user.
  • Customized color palettes; color cycling available in 8 bit mode with QuickDrawmode.
  • Interactive real-time FFT filtering with Quick Draw mode. Real-time 3-D FFT (left, right, coherence and relative coherence),  raw  wave, sphere frequency and six brain wave switch in one OpenGL display.
  • Full Brainwave driven Quick Time Movie, Quick Time MIDI control; user configurableFull Brain wave driven sound control, support for 16 bit sound; user configurable Full image capture and  playback control; user configurable.
EEG Transmission

Fig. EEG Transmission


 1.   Able-bodied subjects using imaginary movements could attain equal or better control accuracies than able-bodied subjects using real movements.

2.   Subjects demonstrated activation accuracies in  the range of 70-82% with false activations  below 2%.

3.   Accuracies using actual finger movements were observed in the range 36-83%.

4.   The average classification accuracy of imaginary movements was over 99%

Brain-to- Machine Mechanism

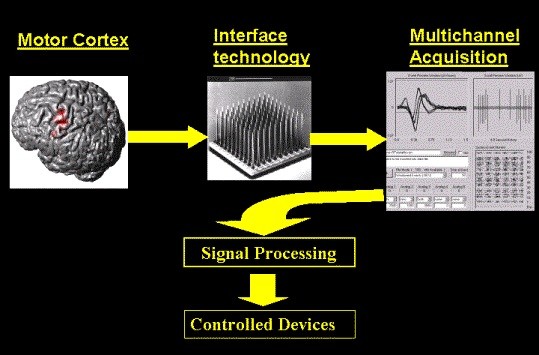

Fig.4 Brain-to- Machine Mechanism

The principle behind the whole mechanism is that the impulse of the human brain can be tracked and even decoded.   The Low-Frequency Asynchronous Switch Design traces the motor neurons in the brain. When the driver attempts for a physical movement, he/she sends an impulse to the motor neuron. These motor neurons carry  the  signal  to  the  physical  components  such  as hands  or  legs. Hence we decode the message at the motor   neuron   to   obtain   maximum   accuracy.      By observing the sensory neurons we can monitor the eye movement of the driver.

Eyeball Tracking

Fig.5 Eyeball Tracking

      As the eye moves, the cursor on the screen also moves and is also brightened when the driver concentrates on one particular point in his environment. The sensors, which are placed at the front and rear ends of the car, send a live feedback of the environment to the computer. The steering wheel is turned through a specific angle by electromechanical actuators. The angle of   turn   is calibrated from the distance moved by the dot on the screen.

Electromechanical Control Unit

Fig.6 Electromechanical Control Unit

Sensors and Their Range

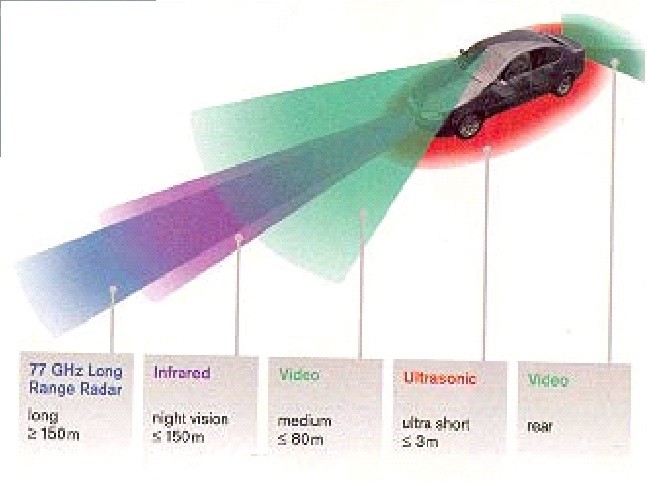

Fig.7 Sensors and Their Range


      The EEG of the driver is monitored continually. When it drops less than 4 Hz then the driver is in an unstable state. A message is given to the driver for confirmation and waits for sometime, to continue the drive. A confirmed reply activates the program for automatic drive. If the driver is doesnt give reply then the computer prompts the driver for the destination before the drive.


       As  the  computer  is  based  on  artificial  intelligence  it automatically  monitors  every  route the car travels and stores it in its map database for future use. The map database  is  analyzed  and  the  shortest route to the destination  is  chosen. With traffic monitoring system provided by xm satellite radio the computer drives the car automatically. Video and anti-collision sensors mainly assist this drive by providing continuous live feed of the environment up to 180 m, which is sufficient for the purpose.

EEG Analysis Window

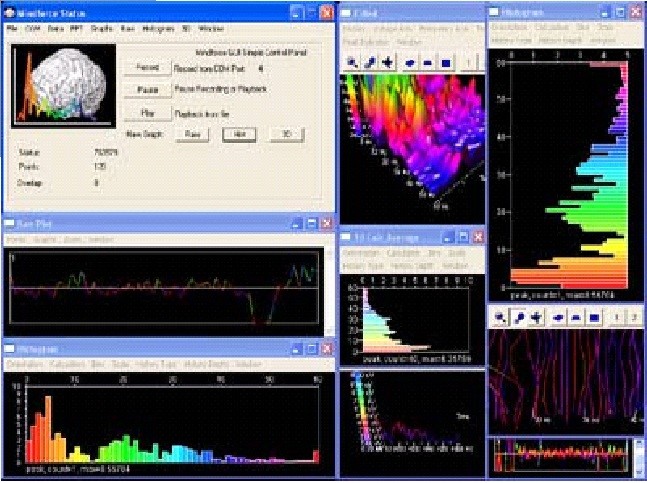

Fig.8 EEG Analysis Window


     When the above requirements are satisfied and  if  brain controlled car for disabled  becomes  cost  effective  then  we  shall  witness  a revolutionary change in the society where the demarcation between the abler and the disabled vanishes. Thus the integration of bioelectronics with automotive systems is essential to develop efficient and futuristic vehicles, which shall be witnessed soon helping the disabled in every manner in the field of transportation.
