Keyway broaching is one of the most reliable and precise methods for producing internal keyways, splines, and other accurate profiles in mechanical components. It offers excellent dimensional accuracy and repeatability, making it widely used across manufacturing, aerospace, and heavy-equipment industries.
However, even this efficient process presents challenges that can affect part quality, surface finish, and tool life if not managed properly. Understanding these common issues and learning how to prevent them is essential for maintaining consistent precision and performance.
Understanding the Keyway Broaching Process

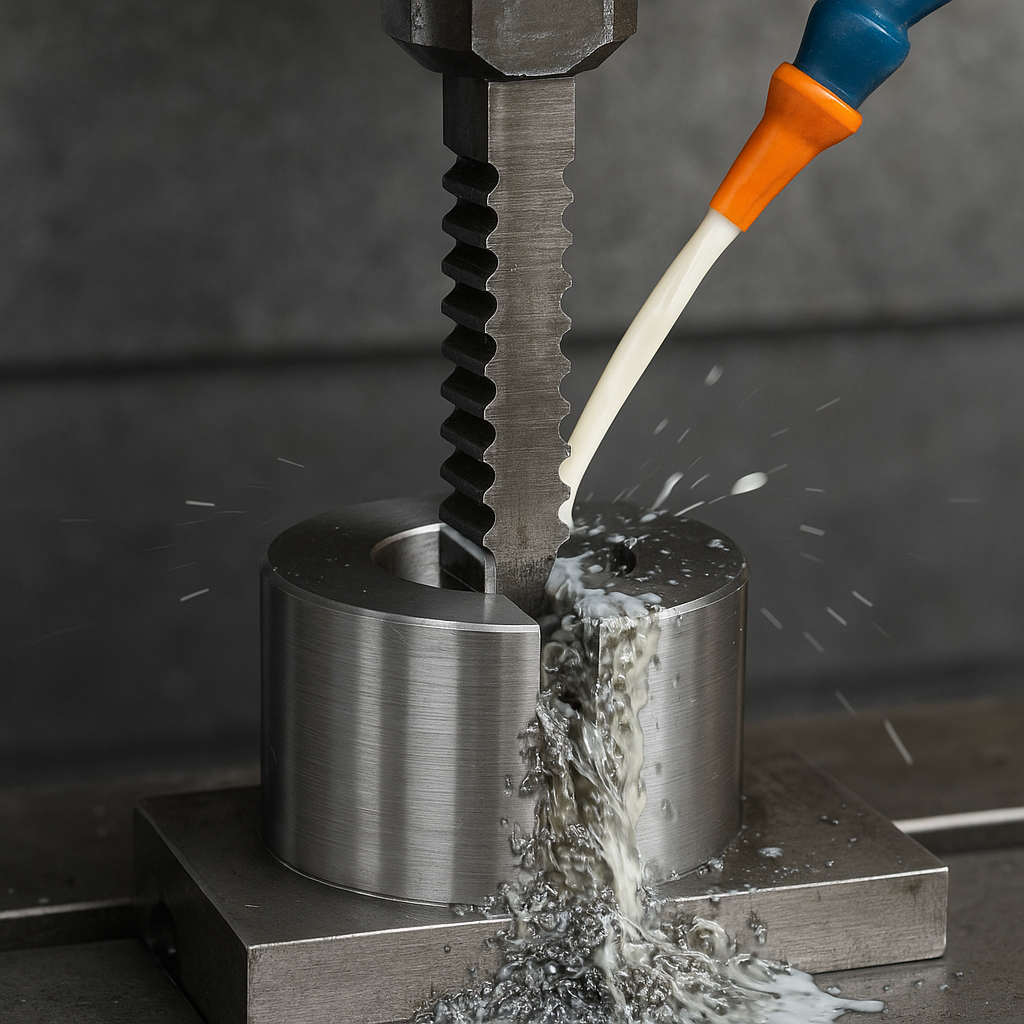

Keyway broaching uses a toothed tool, called a broach, to progressively remove material from a pre-drilled hole or bore. Each tooth removes a small amount of material as the tool passes through the workpiece, resulting in a uniform and accurately shaped slot.
Although the process seems straightforward, factors such as alignment, lubrication, and tool condition play a major role in the final result. Even small deviations in setup can cause dimensional errors, surface defects, or premature tool wear. High-precision broaching services rely on calibrated machines, quality tooling, and strict process control to achieve consistent results across materials and production volumes.
Read about Continuous Broaching Machines
Common Problems in Keyway Broaching
1. Tool Wear and Damage
As the broach cuts through material, heat and friction gradually dull its cutting edges. Over time, worn or chipped teeth can cause rough surfaces, dimensional inaccuracies, and even tool breakage.
Prevention:
- Inspect and sharpen the broach regularly.
- Use suitable cutting fluids to minimize friction and heat.
- Maintain correct feed rates and alignment to avoid uneven tool loading.
2. Poor Surface Finish
A rough or inconsistent surface finish often results from dull tools, improper lubrication, or excessive feed pressure. Irregular cutting action can cause chatter marks or tearing that compromise component fit and functionality.
Prevention:
- Keep broaches sharp and use cutting speeds appropriate for the material.
- Ensure steady lubrication to reduce friction and flush chips away from the cutting area.
- Monitor vibration and cutting pressure throughout the process.
3. Dimensional Inaccuracy
Keyways that are too wide, narrow, or misaligned can lead to assembly issues or premature failure. These problems usually stem from incorrect setup, tool wear, or machine instability.
Prevention:
- Align the broach and workpiece accurately using precision fixtures.
- Check dimensions frequently during production.
- Perform periodic calibration and maintenance of broaching machines.
4. Chip Packing
Chip accumulation inside the keyway can obstruct the cutting action, resulting in tool damage or poor finish. This is especially common when cutting deeper slots or harder materials.
Prevention:
- Choose broaches with optimized tooth geometry or chip breakers.
- Ensure sufficient cutting fluid flow to carry away chips.
- Avoid feed rates that exceed the machine’s chip evacuation capability.
5. Material Hardness Variation
Uneven hardness within a workpiece can cause variable cutting pressure, excessive tool wear, and dimensional variations. This issue is common in heat-treated materials or castings with inconsistent microstructures.
Prevention:
- Inspect raw materials for hardness consistency before machining.
- Use coated broaches for hard or abrasive materials.
- Adjust feed pressure and speed to suit hardness variations.
6. Machine Misalignment
Even slight misalignment between the broach and workpiece bore can produce tapered or uneven keyways. It also accelerates wear on the tool and guide bushing.
Prevention:
- Check machine alignment regularly with precision gauges.
- Ensure guide bushings are properly seated and maintained.
- Follow consistent setup procedures to achieve uniform cuts.
The Role of Lubrication and Coolant
Lubrication plays a critical role in keyway broaching by reducing friction, controlling heat, and removing chips. Selecting the right cutting fluid for the material is just as important as choosing the correct tool geometry or feed rate.
Light cutting oils typically work well for aluminum and brass, while heavier or synthetic oils are better for harder materials like carbon steel and alloy steel that generate more heat during cutting.
Process Optimization Through Inspection and Maintenance
Routine inspection and preventive maintenance are the cornerstones of reliable broaching performance. Monitoring factors such as cutting force, temperature, and vibration helps identify potential issues before they cause downtime. Periodic tool reconditioning and machine calibration ensure that dimensional tolerances remain within specification.
For applications that require tight tolerances or production runs across varied materials, partnering with an experienced provider of keyway broaching services ensures consistent precision and efficiency. Companies like Precision Gears, Inc. maintain a wide selection of broach bars and shaping tools for metals and engineered plastics, offering customized solutions for both short and long production runs.
Matching the Process to the Application
Different materials and component geometries call for tailored approaches. Broaching aluminum and plastics, for instance, requires lower cutting forces and sharper rake angles, while steel or ductile iron demands higher rigidity and careful chip control. Experienced technicians evaluate these variables before selecting the proper broach and process parameters.
Broaching and shaping, though similar, also differ in capacity and tooling approach. Understanding which method fits the application best helps achieve the required tolerances and finish quality without overloading the machine or tool.
Conclusion: Precision Through Prevention
Keyway broaching remains an indispensable machining method for creating accurate internal profiles. Yet precision depends on more than just a well-designed broach; it requires attention to detail at every stage, from setup and lubrication to material verification and machine alignment.
By recognizing common issues such as tool wear, chip packing, and dimensional inaccuracies, and addressing them through disciplined maintenance and correct technique, operators can extend tool life, improve productivity, and maintain the high standards required in modern manufacturing. Working with a trusted specialist in keyway broaching services ensures that every cut meets exact specifications, reinforcing both performance and reliability in every finished component.
